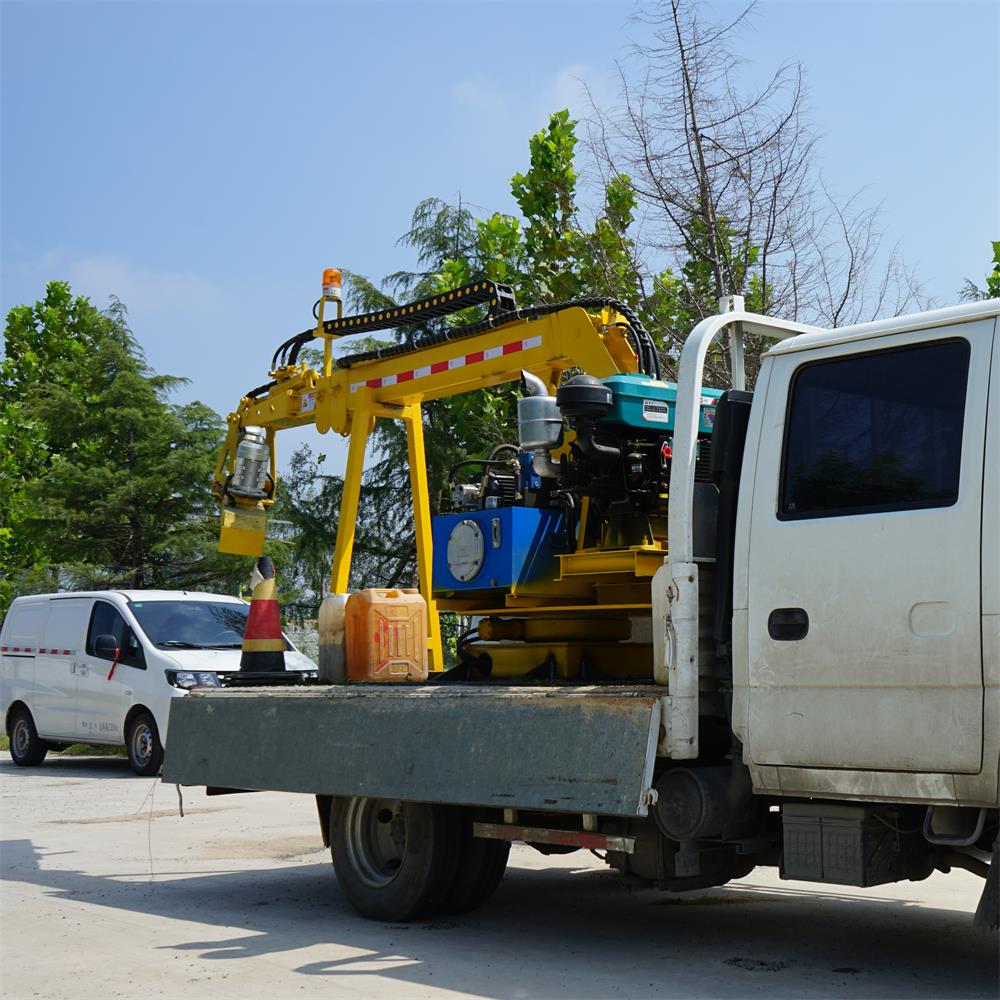

4.5m Telescopic Arm Hedge Trimming Machine
Product Overview
The 4.5m Telescopic Arm Hedge Trimming Machine is designed for municipal greening, roadside hedge maintenance, landscape trimming and garden management. With a three-section telescopic arm structure, 360° chassis rotation and 360° cutter head rotation, the machine helps operators complete hedge trimming work more efficiently in roadside, park, community and landscaping projects.
This model is suitable for customers who need a compact hedge trimming solution with flexible reach, simple operation and lower labor cost for daily vegetation maintenance.
Product Details
This hedge trimming machine adopts a three-section telescopic arm structure with a maximum trimming distance of 4500mm from the turntable center. The machine supports downward trimming distance up to 5000mm and maximum trimming height up to 3500mm, making it suitable for multiple trimming angles and roadside vegetation shapes.
The cutter head is driven by a 2.2kW high-speed motor, and the blade speed can reach 2400r/min or above. The trimming head width is available from 1.2m to 2m, suitable for different hedge widths and landscape maintenance requirements.
The machine supports button operation and remote control operation, allowing easier control during trimming work. Its compact folded size also makes transportation and storage more convenient for municipal maintenance teams and landscaping contractors.
Key Applications

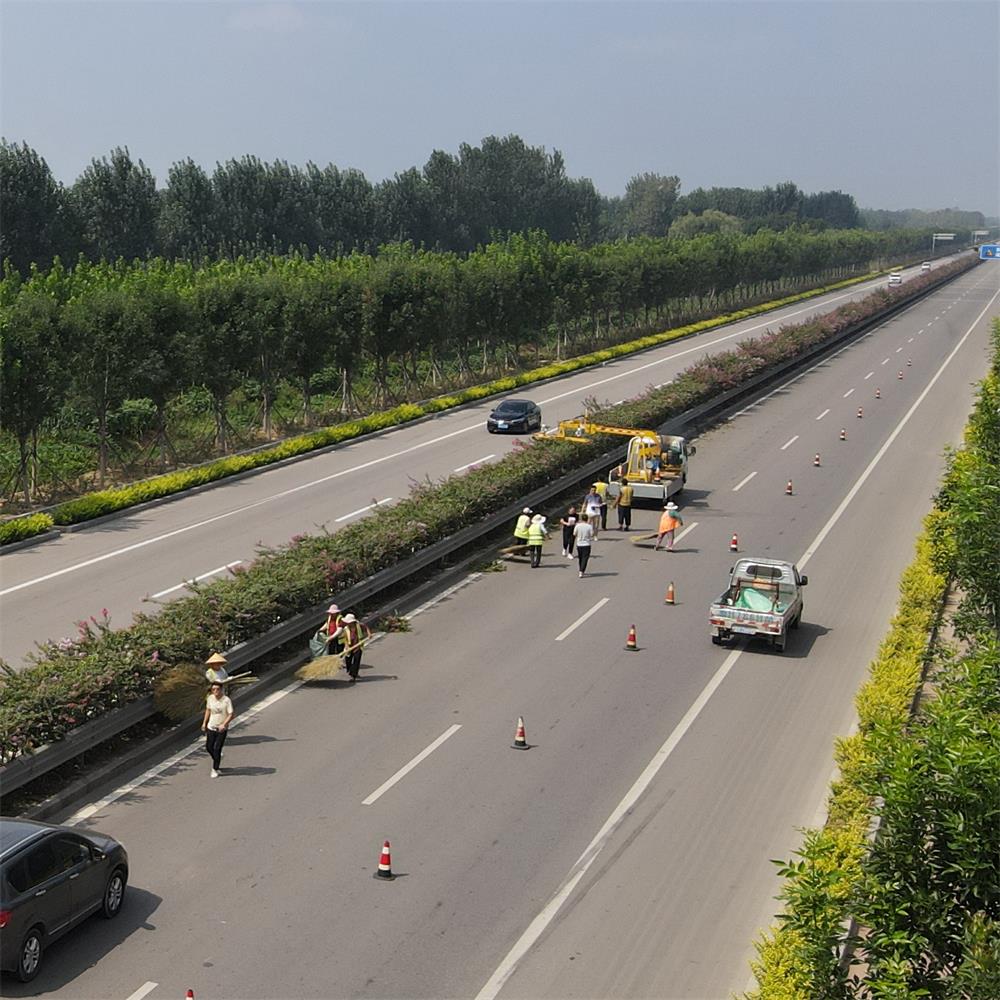

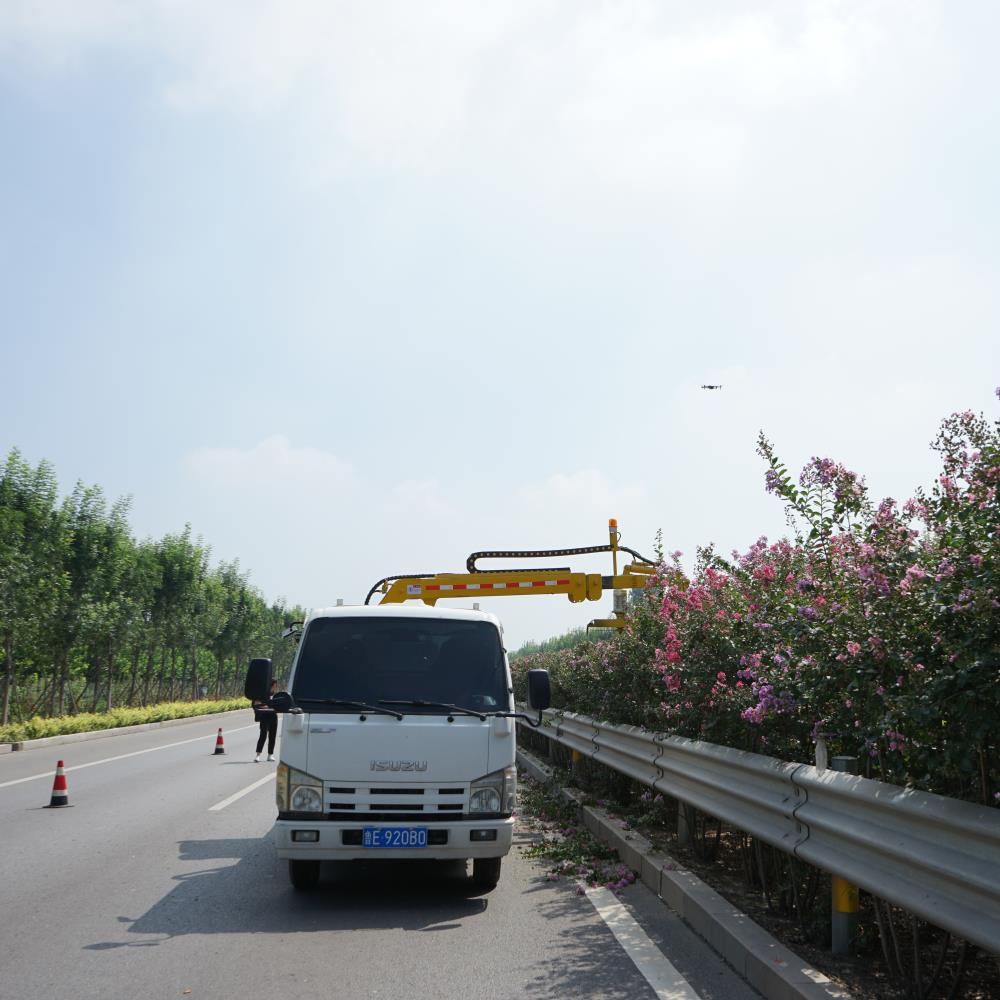

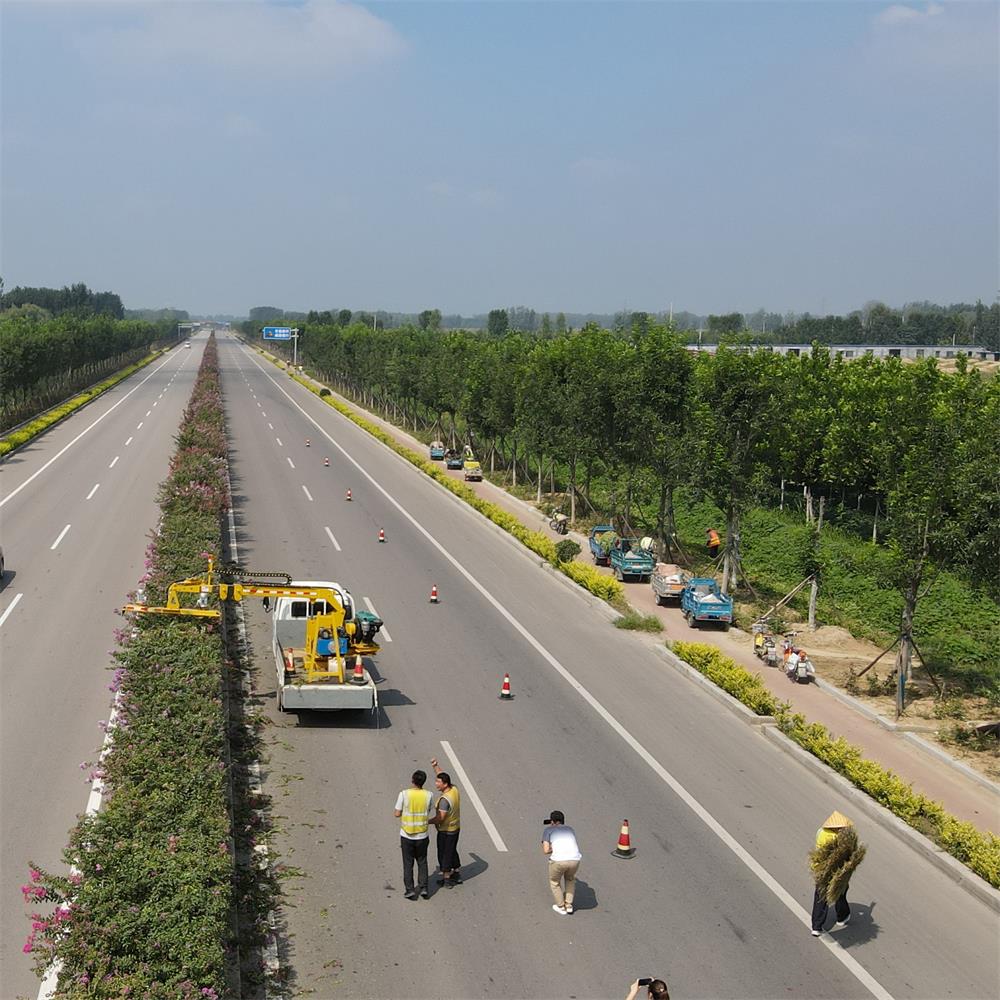

Roadside hedge trimming
Municipal greening maintenance
Highway and road shoulder vegetation trimming
Park and garden landscape maintenance
Community greening projects
Industrial area and campus landscaping
Key Selling Points
4.5m maximum trimming distance from turntable center
Three-section telescopic arm structure
360° chassis rotation and 360° cutter head rotation
2.2kW high-speed cutter motor
Blade speed ≥2400r/min
Button operation and remote control operation
Compact structure for daily municipal maintenance work
| Item | Specification |
|---|---|
| Product Type | Hedge Trimming Machine |
| Arm Structure | Three-section telescopic arm |
| Engine | Single-cylinder 24HP water-cooled engine |
| Engine Brand | Xidong |
| Engine Power | 16.2 kW |
| Machine Weight | 1500 kg |
| Overall Dimensions After Arm Retraction | 4400 × 1600 × 1800 mm |
| Maximum Trimming Distance From Turntable Center | 4500 mm |
| Downward Trimming Distance | 5000 mm |
| Maximum Trimming Height | 3500 mm |
| Working Speed | ≤5 km/h |
| Cutter Head Drive Mode | 2.2 kW high-speed motor |
| Blade Speed | ≥2400 r/min |
| Cutter Head Trimming Width | 1.2–2 m |
| Cutter Head Type | Ball-shaped trimming head |
| Hydraulic System | 2.2 kW oil pump motor driving displacement 10 hydraulic gear pump with electromagnetic hydraulic valve |
| Control System | Button operation and remote control operation |
| Chassis Rotation Angle | 360° |
| Cutter Head Rotation Angle | 360° |
| Counterweight Box Capacity | None |
| Diesel Tank Capacity | 15 L, subject to the actual engine configuration |
| Hydraulic Oil Tank Capacity | 80 L |
